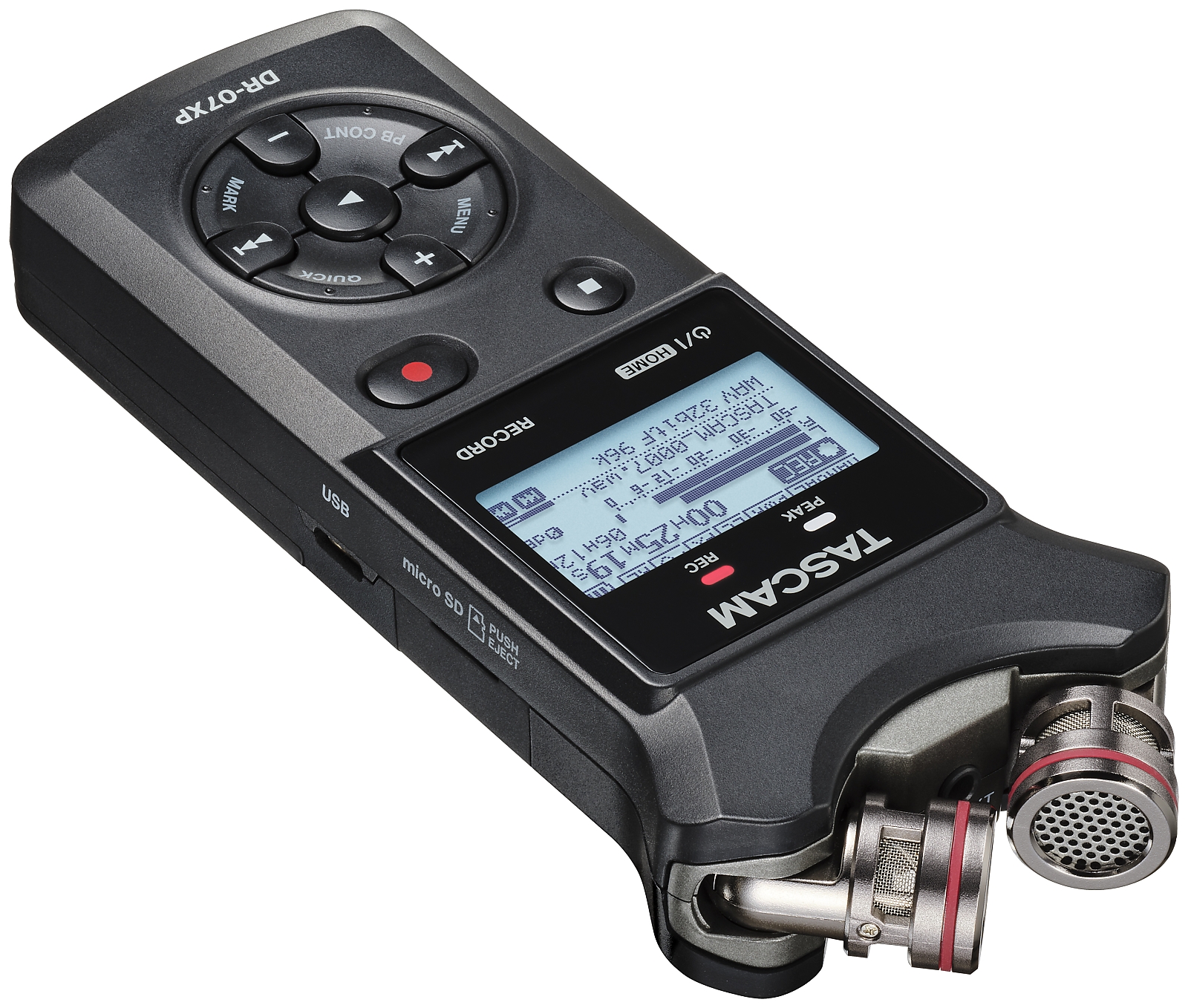

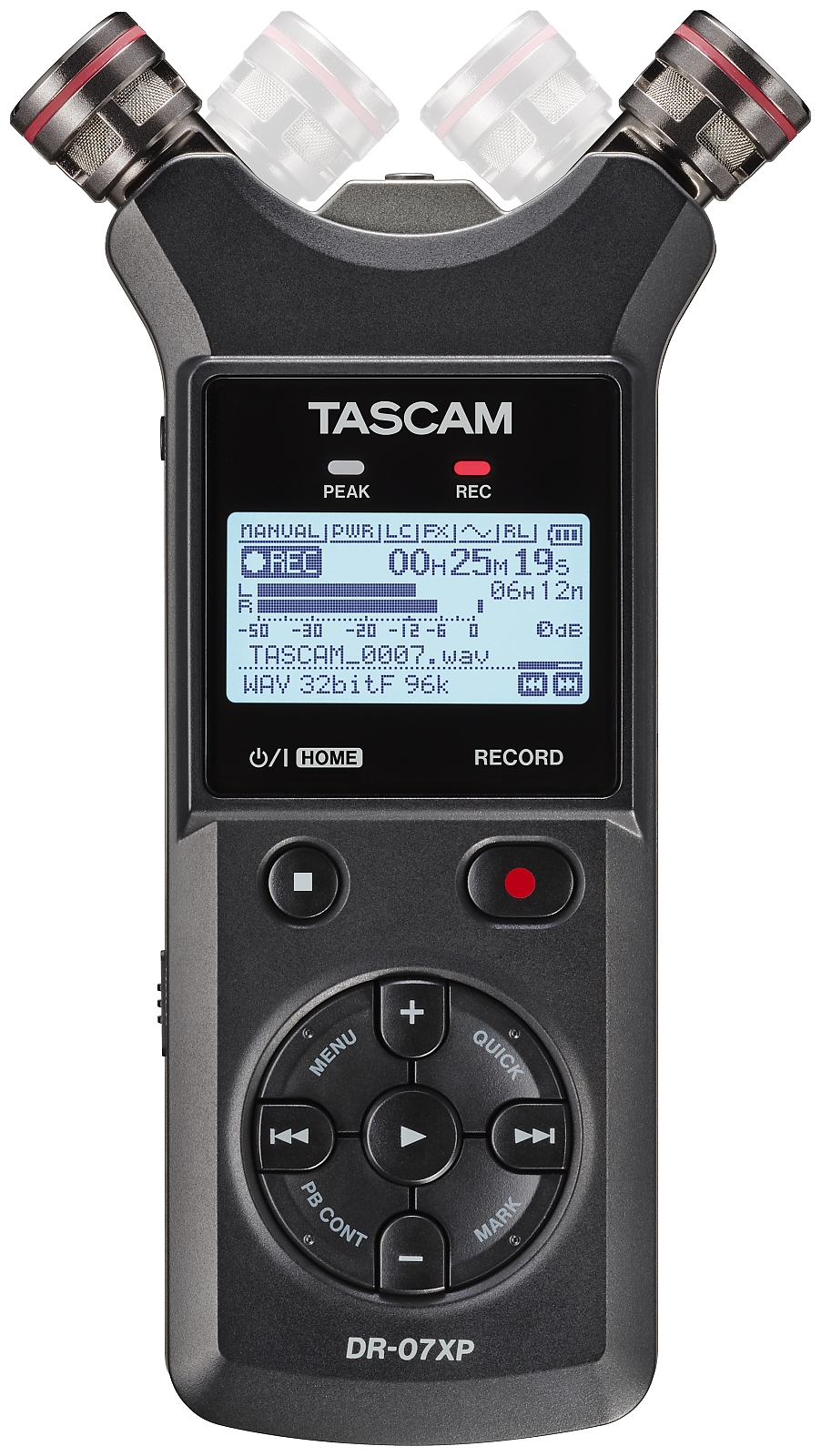

DR-07XP
Stereo Handheld Audio Recorder With USB Audio Interface and Adjustable Microphones
32-Bit Float Mobile Recording
Create Professional Audio Recordings
From the Palm of Your Hand
The DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound.
With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.
Capture Pro-Level Recordings Every Time
With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct and free of distortion that could ruin your recording – and you’ll never need to worry about setting input levels.Adjustable Stereo Condenser Microphones

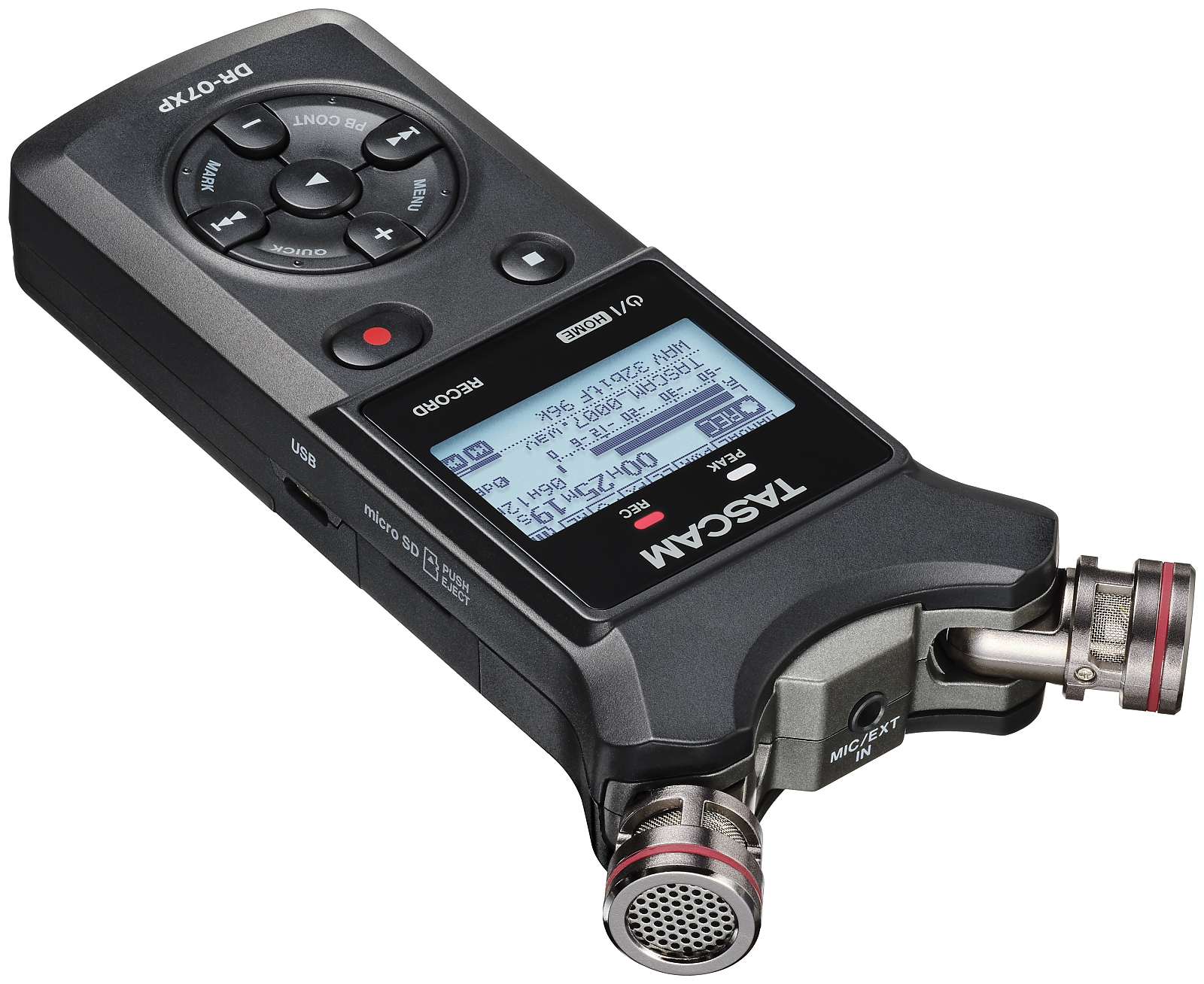

The DR-07XP features stereo condenser microphones with adjustable A-B or X-Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.Simplicity in Your Palm
With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand.
Plus, the backlit LCD screen means no squinting, just clear and concise navigation any time of day, in any environment.
Your Portable Recording Studio
The DR-07XP isn’t only a powerful portable recorder — it’s also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.
Ideal for Musicians
The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.
On location
With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises.
As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.
Record Anything, Anywhere
From dialogue to vlogs, whether you’re in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini-jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo.
Connect the unit to a computer via USB-C for use as a USB microphone.
Details

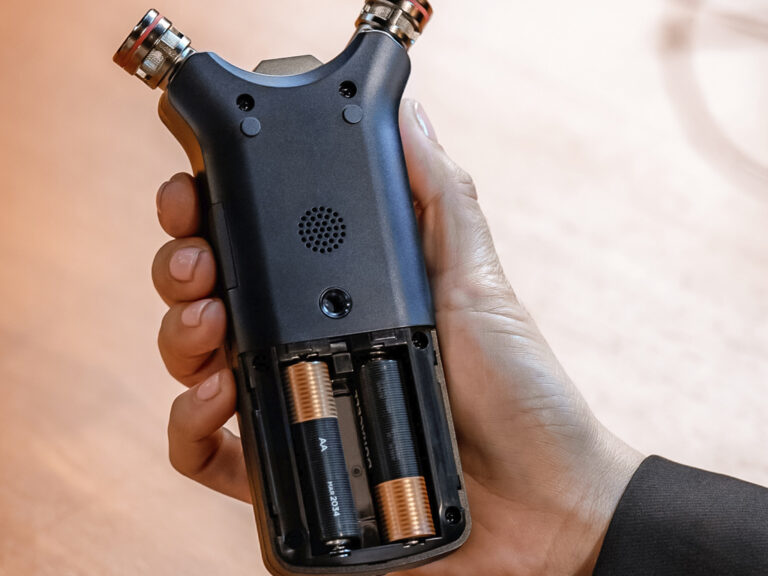

Long Battery Life
With up to 17½ hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.

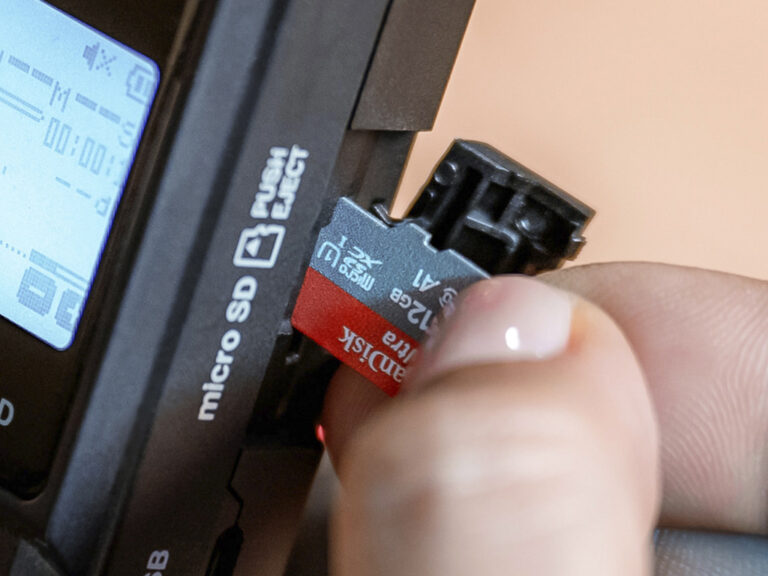

Large Recording Capacity
Support of microSDXC cards up to 512 GB gives you ample recording capacity for on-the-go use.

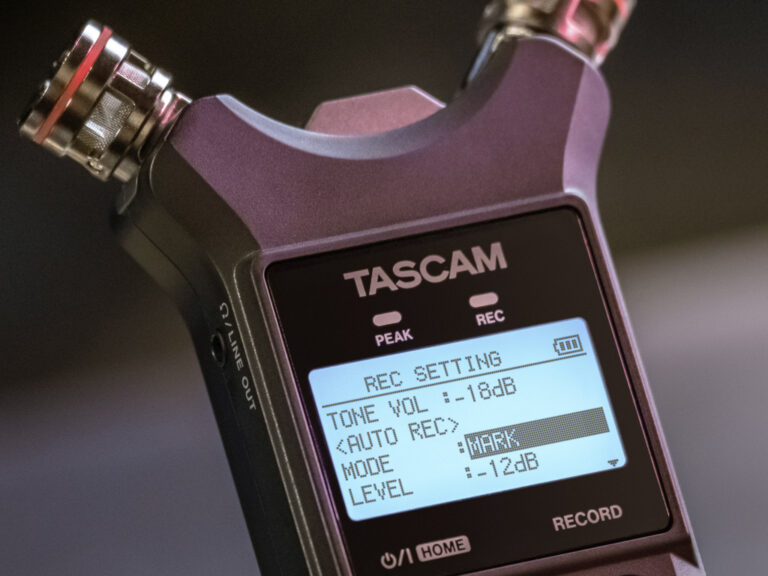

Sound-Sensitive Auto Recording
Automatically start recording when sound is detected with Auto Recording mode.

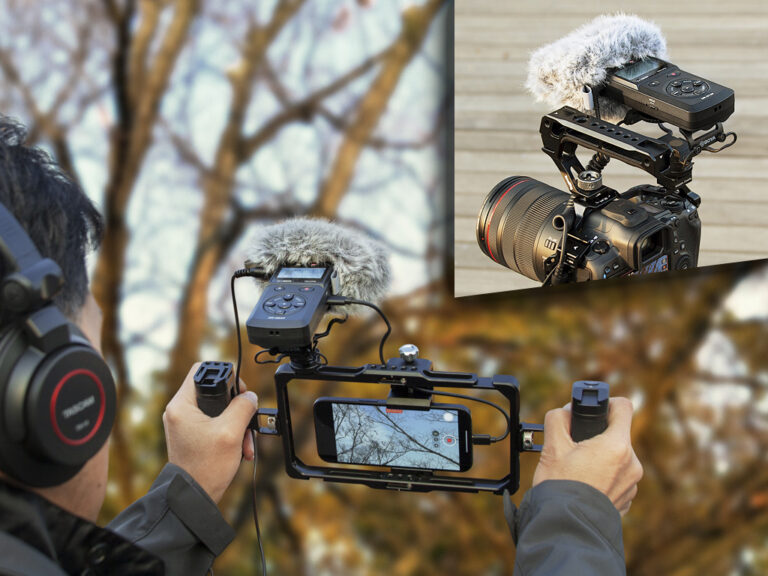

Ready for DSLR and iPhone
Auto Tone output for DSLR optimises the DR-07XP for use in videography and content creation.

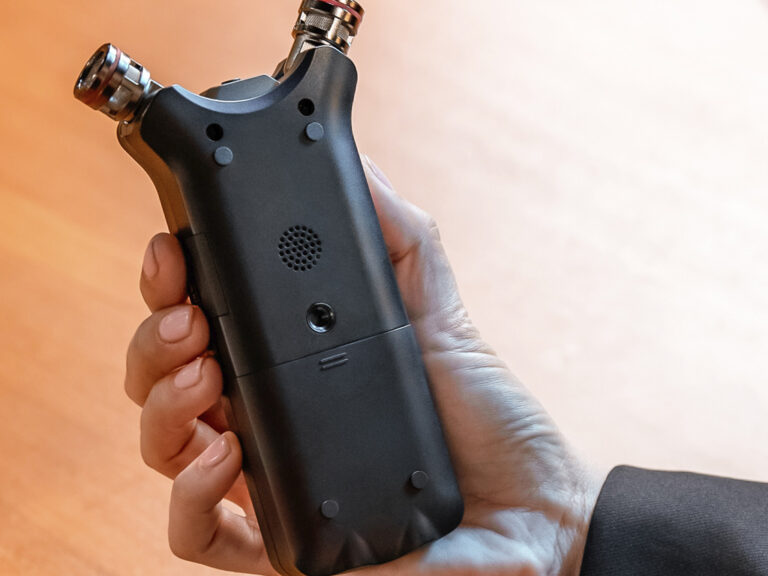

Built-in Reference Speaker
A built-in monaural loudspeaker allows you to check your recordings without putting on headphones.
Input for External Sources
A stereo mini jack is provided for external stereo microphones or other stereo line-level sources.

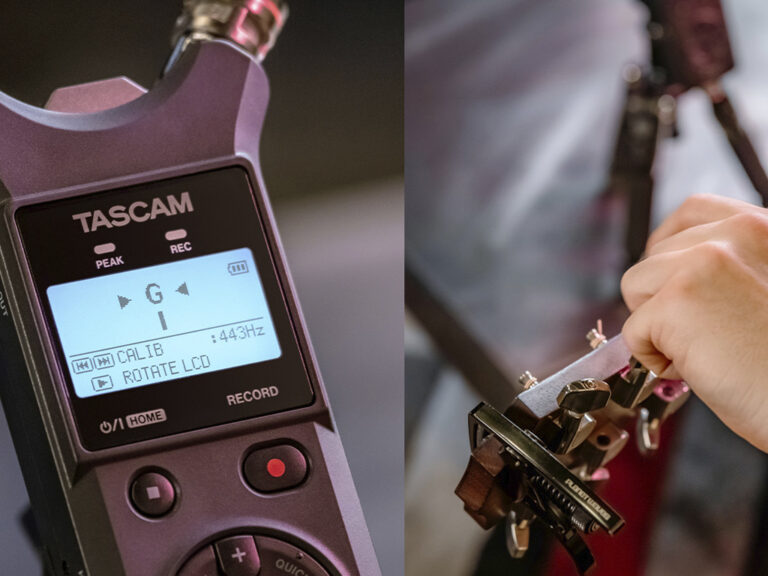

Built-In Chromatic Tuner
Easily tune your musical instruments in different scales with the built-in chromatic tuner.
Multiple-Language Menu
Navigate the on-screen menus in one of the most widely used languages (English, French, German, Italian, Spanish, Portuguese, Japanese, Chinese, Korean).
Features at a glance
- Two-channel portable handheld audio recorder with microSDXC card storage
- 32-bit float resolution ensures low-noise, distortion-free recordings
- Built-in condenser microphones handle loud environments and sources (up to 125 dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- More than 17 hours operation with two AA alkaline batteries
- Supported audio formats:
- Linear PCM (WAV/BWF) at 32-bit float, 24 bit, 16 bit (sampling rates 96 kHz, 48 kHz, 44.1 kHz)
- Compressed (MP3): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)
Recording
- Cardioid stereo condenser microphones, easy to set up in either AB or XY configuration
- XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
- Switchable filter to minimize unwanted low-frequency noise (40 Hz, 80 Hz, 120 Hz)
- Manual recording level setting for music and field recording
- Three options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
- Auto-recording function to automatically start recording based on input level
- Marks can be added automatically when using the automatic recording function
- Overwrite function for punch-in recording with one level of Undo
- Overdub function for non-destructive overdubbing
- Dictation mode designed for human voice recording and transcription
- Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
- Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
- A new file can be created manually during recording or automatically when a certain file size is reached
- Set marks to quickly locate certain audio positions (up to 99 per file)
- Automatic tone generator convenient when editing with video on other equipment
- Stereo mic/line input with plug-in power to connect an external source or microphone
- File name format can be set to use a predefined word or the date
Playback
- Automatic level align prevents uneven playback levels
- Variable speed audition to change the playback tempo without affecting the key (50–200 %)
- Repeat/loop function (repeat one track, all tracks or a marked section, convenient for practicing music and studying languages
- Playlist feature to play files in a certain order
- Resume function retains the last stop position and starts playback from that position when power is turned back on
- Jump back function to instantly review playback (1–10, 20, 30 seconds)
- Equalizer for tone control during playback
- MP3 ID3 tag display (up to version 2.4)
- Built-in loudspeaker
- Headphones/Line output
Other features
- Built-in reverb effect (6 presets, can be applied to input or output signal)
- Chromatic tuner function to tune your instrument
- QUICK menu button for easy access to various functions
- File divide function to cut unwanted noise or to extract parts from long recordings
- Folder management to organize your files
- Hold function to avoid inadvertent operation
- Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Korean, Japanese, Chinese, Russian
- Clear, backlit LC display
- USB 2.0 port for file transfer to/from computer (USB-C type)
- Power supply by 2 AA size Alkaline or NiMH batteries, USB bus power or optional AC adapter (Tascam PS-P520U)
- Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
Specifications
| General | |
|---|---|
| Recording media | microSD/microSDHC/microSDXC card (up to 512 GB) |
| Recording/playback format | |
| WAV | Sampling frequency: 44.1/48/96 kHz Quantization bit depth: 16-bit / 24-bit / 32-bit float |
| MP3 | Sampling frequency: 44.1/48 kHz Bit rate: 32/64/96/128/192/256/320 kbit/s |
| Number of channels | Input channels: 2 (stereo) Recording tracks: 2 (stereo) |
| Analogue audio inputs and outputs | |
|---|---|
| Microphone/External input (can provide plug-in power) | 3.5-mm stereo mini jack |
| Input impedance | ≥18 kΩ (plug-in power off) ≥2 kΩ (plug-in power on) |
| Nominal input level | −20 dBV |
| Maximum input level | −4 dBV |
| Headpones/Line output | 3.5-mm stereo mini jack |
| Output impedance | 12 Ω |
| Nominal output level | −14 dBV (10 kΩ load) |
| Maximum output level | +2 dBV (10 kΩ load) |
| Maximum output power | 20 mW + 20 mW (32 Ω load) |
| Working impedance | 16−250 Ω |
| Built-in loudspeaker | 0.3 W (mono) |
| Control inputs and outputs | |
|---|---|
| USB | Type-C connector |
| Format | USB 2.0 HIGH SPEED mass storage class USB 1.1 FULL SPEED audio class |
| USB Audio | |
| Sampling frequency | 44.1/48 kHz |
| Quantization bit depth | 24 bit |
| Number of audio inputs | 2 channels |
| Number of audio outputs | 2 channels |
| Audio performance | |
|---|---|
| Frequency response | 20 Hz – 20 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 44.1 kHz, JEITA) 20 Hz – 22 kHz, +0/−1 dB (MIC/EXT IN to LINE OUT, 48 kHz, JEITA) 20 Hz – 40 kHz, +0/−1.5 dB (MIC/EXT IN to LINE OUT, 96 kHz, JEITA) |
| Total harmonic distortion ratio (THD+N) | ≤0.01 % (MIC/EXT IN to LINE OUT, 44.1/48/96 kHz, JEITA) |
| Note: JEITA indicates conformance to JEITA CP-2150 |
| Power supply and other specifications | |
|---|---|
| Power supply | 2 AA batteries (alkaline or NiMH, sold separately) USB bus power from a computer Dedicated AC adapter (TASCAM PS-P520U, sold separately, DC 5 V, 2 A) |
| Power consumption | 1.7 W / 5 V, 0.5 A (maximum) |
| Dimensions (W × H × D) | 68 mm × 160 mm × 27 mm (microphones in XY configuration) 90 mm × 160 mm × 27 mm (microphones pair in AB configuration) |
| Weight | 184/136 g (with/without batteries) |
| Permissible operating temperature range | 0–40 °C |
Design and specifications subject to change without notice.
