CD-6010
Professional CD Player
The CD-6010 offers top-of-the-line CD playback for any scenario. Designed with the Broadcast market in mind, this CD-player utilizes a tray-loading design, safety features and an emergency release function to accommodate all situations. By employing the CD-5010B drive, rated highly among audiophiles, the CD-6010 offers high-quality sound that is rarely matched in rack-mounted players. With CD’s still so widely used in the Broadcast, Installation, and Touring markets, the CD-6010 is specified.

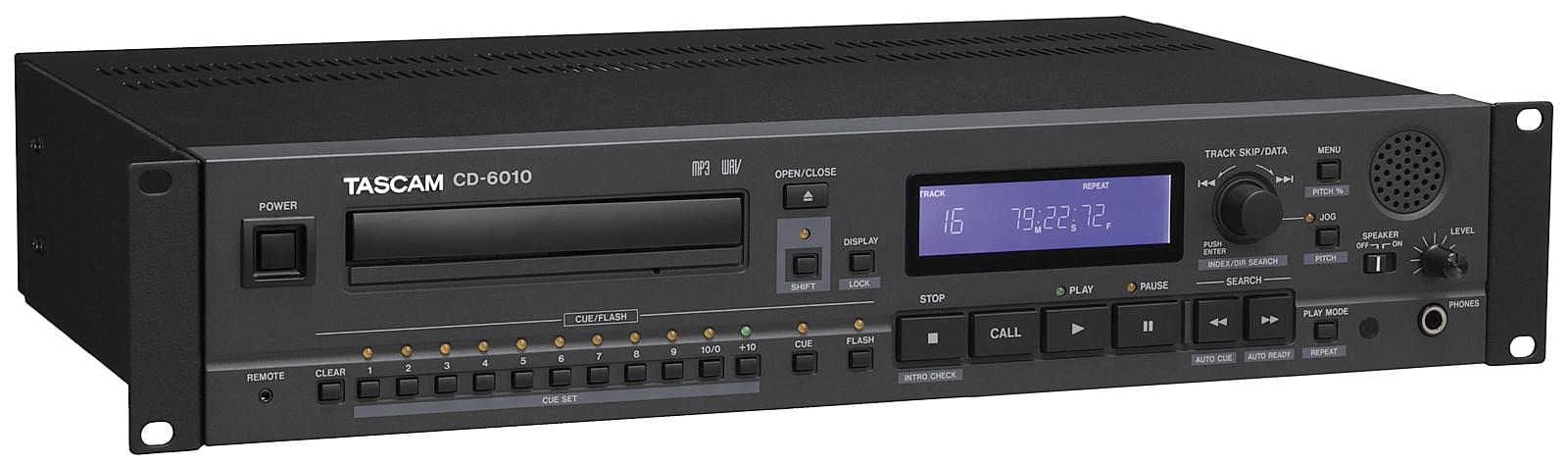

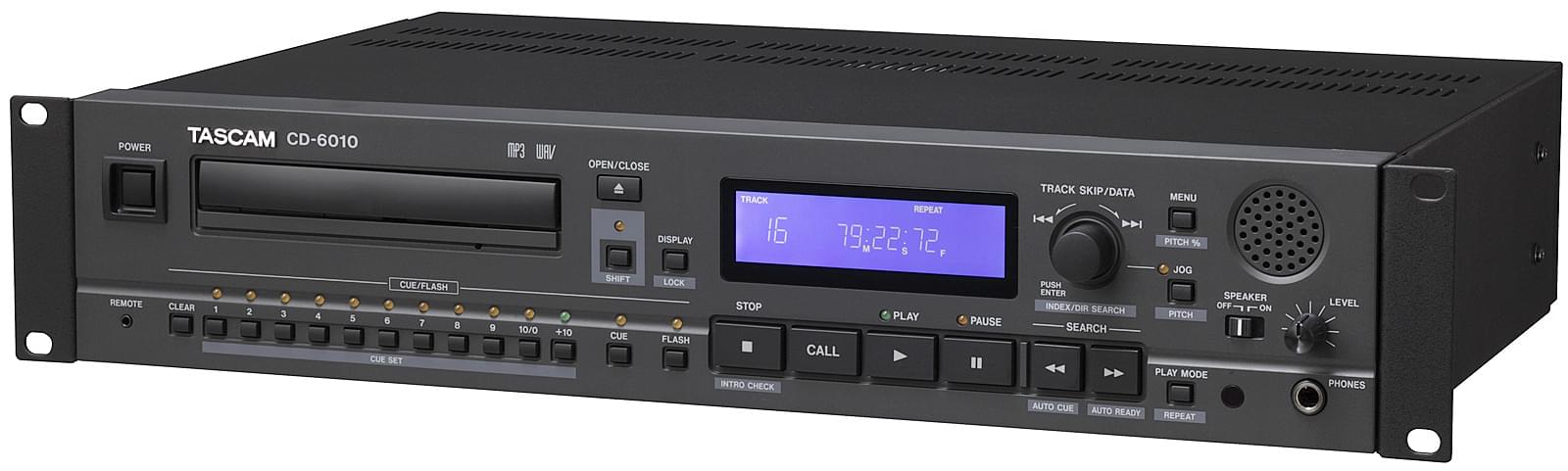

Another unique feature of the CD-6010 is a monitoring speaker on the front of the unit – perfect for cuing-up tracks straight from the unit if installed in a remote area or closet. The CD-6010 also has 20 points of cue memory, 20 tracks of flash start, and supports Auto Cue, Auto Ready and Incremental Play. Furthermore, it features ±16% pitch control for CD playback speed and up to 100 discs of program memory.

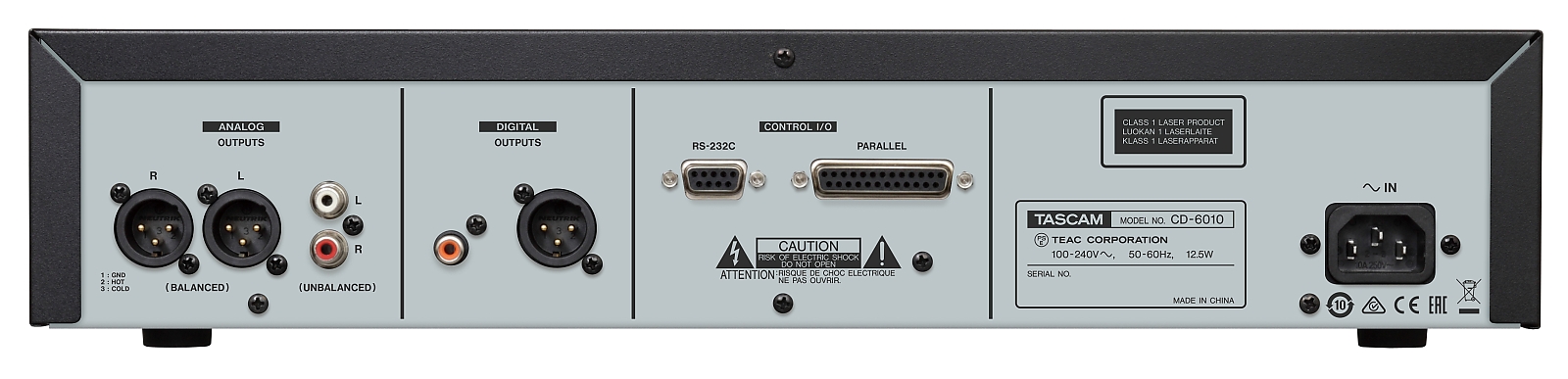

A complete compliment of interface ports are found on the rear panel. Both XLR balanced outputs and RCA unbalanced analogue outputs are provided, as well as SPDIF and AES/EBU digital outputs. The CD-6010 can be controlled through RS-232C, parallel control, or an optional RC-3F footswitch.
With its variety of ease-of-use, safety and bonus features, the CD-6010 is a prime 2U rack-mountable CD player for any professional application.
Features at a glance
- Highly reliable tray CD player for broadcast, installation or touring applications
- Audio CD-R/RW, MP3 (192 KBit/s) and WAV playback
- Flash start capability for up to 20 tracks
- Numeric keys for track selection and flash start
- Frame accurate search
- Memory for up to 20 cue points
- Skip back function (jump back a few seconds during playback)
- Auto cue, auto ready, incremental playback, intro check functions
- Resume function
- Index search for audio CDs
- Directory search for MP3 CDs
- Playback modes include Single, All and Program (up to 99 tracks)
- Memory for playback programs of up to 100 CDs
- Repeat modes include Single, All and A–B
- Selectable interval time between tracks
- ±16% pitch control
- Key original function (change speed only)
- Fade in/out (up to 10 seconds, in 0.5-second steps)
- Time display (track elapsed / track remain / total remain)
- Power-on play (timer function)
- Relay play with multiple units
- Fader start / event start
- Lock function to avoid accidental operation
- Anti-shock memory
- XLR balanced analogue output (output level may be customized by technical support)
- RCA unbalanced analogue output
- Coaxial digital output (SPDIF)
- XLR AES/EBU digital output
- Mono output
- Serial control (RS-232C, D-sub 9-pin)
- Parallel control port (D-sub 15-pin)
- Headphones output with dedicated volume control
- Switchable monitor loudspeaker
- Last mode memory (Playback mode / Program / Repeat mode / Time display)
- End Of Message notification
- Backlit LC display
- Removable power cable
- Rack-mountable chassis (2 U)
- Wireless remote control included (receiver can be disabled if required)
- Available as options:
Specifications
| Media and formats | |
|---|---|
| Device type | CD player |
| Compatible discs | Compact discs (12cm/8cm, including CD-R discs) |
| Playable disc types | CD-A, CD-ROM (ISO9660 LEVEL 1/2/JOLIET format) |
| Playable file formats | Audio CD (CD-DA), MP3 (MPEG Audio Layer III), WAV |
| MP3 playback specifications | |
| Audio Modes | stereo/mono |
| Sampling Frequency | 32 kHz/44.1 kHz/48 kHz |
| Bit Rate | 32 kbps–320 kbps and VBR |
| WAV playback specifications | |
| Sampling Frequency | 32 kHz/44.1 kHz/48 kHz |
| Sampling Bit Rate | 16 bit |
| Audio CD playback specifications | |
| Sampling Frequency | 44.1 kHz |
| Sampling Bit Rate | 16 bit |
| Number of Channels | 2 |
| Analog audio outputs | |
|---|---|
| Analog outputs (unbalanced) | RCA pin jacks |
| Output impedance | 200 Ω |
| Standard output level | −10 dBV (0.32 Vrms) |
| Maximum output level | +6 dBV (2.0 Vrms) |
| Analog outputs (balanced) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Output impedance | 100 Ω |
| Standard Output level | +4 dBu (1.23 Vrms) |
| Maximum Output level | +24 dBu (12.28 Vrms) |
| PHONES connector | 6.3-mm standard stereo jack |
| Maximum output power | 45 mW + 45 mW or more (THD+N 0.1% or less, 32 Ω load) |
| Digital audio outputs | |
|---|---|
| Digital output connector (COAXIAL) | RCA pin jack |
| Supported signal formats | IEC 60958-3 standard for consumer use, IEC 60958-4 for professional use |
| Output impedance | 75 Ω |
| Output level | 0.5 Vpp |
| Digital output connector (XLR) | XLR-3-32 (1: GND, 2: HOT, 3: COLD) |
| Supported signal formats | IEC 60958-3 standard for consumer use, IEC 60958-4 for professional use |
| Output impedance | 110 Ω |
| Control inputs and outputs | |
|---|---|
| REMOTE connector | 2.5-mm TRS jack |
| RS-232C connector | D-sub 9-pin (female) |
| CONTROL I/O PARALLEL | D-sub 25-pin (female) |
| Audio performance | |
|---|---|
| Frequency response | 20 Hz–20 kHz ±0.5 dB (JEITA) |
| S/N ratio | 95 dB or more (JEITA) |
| Dynamic range | 95 dB or more (JEITA) |
| Distortion | 0.005% or less (JEITA) |
| Channel separation | 95 dB or more (1 kHz, JEITA) |
| Power supply and other specifications | |
|---|---|
| Power supply | AC 100-240 V, 50-60 Hz |
| Power consumption | 12.5 W |
| Dimensions (W x H x D) | 483 mm x 94 mm x 306 mm |
| Weight | 4.9 kg |
| Operating temperature range | 5–35 °C |
| Installation angle | 15° or less |
Design and specifications subject to change without notice.
